HZB, Germany

Astrid Berens

Helmholtz-Zentrum Berlin für Materialien und Energie (HZB) researches solutions for a climate-neutral society. Researchers are developing and optimizing efficient and cost-effective materials for solar cells, batteries and catalysts.

HZB offers treatment of ocular melanoma as well as the possibility to irradiate solar cells, electronic devices, and systems, with protons from the HZB cyclotron.

The standard proton beam is the therapeutic beam with an energy of 68 MeV. Lower energies are achieved quickly by the insertion of degrader plates.

The size of the beam spot varies from 50 mm diameter with a homogenous intensity distribution down to 1 mm (focused). Typical applied proton intensities vary from 104 protons/cm² to 1013 protons/cm².

The devices under test are mounted on a xy-table with a stroke of 500 mm in ambient atmosphere. The maximum weight of the samples for the table is 50 kg. They can be operated under irradiation. An ionisation chamber surveys the proton fluence on-line.

On request, irradiations in vacuum are feasible.

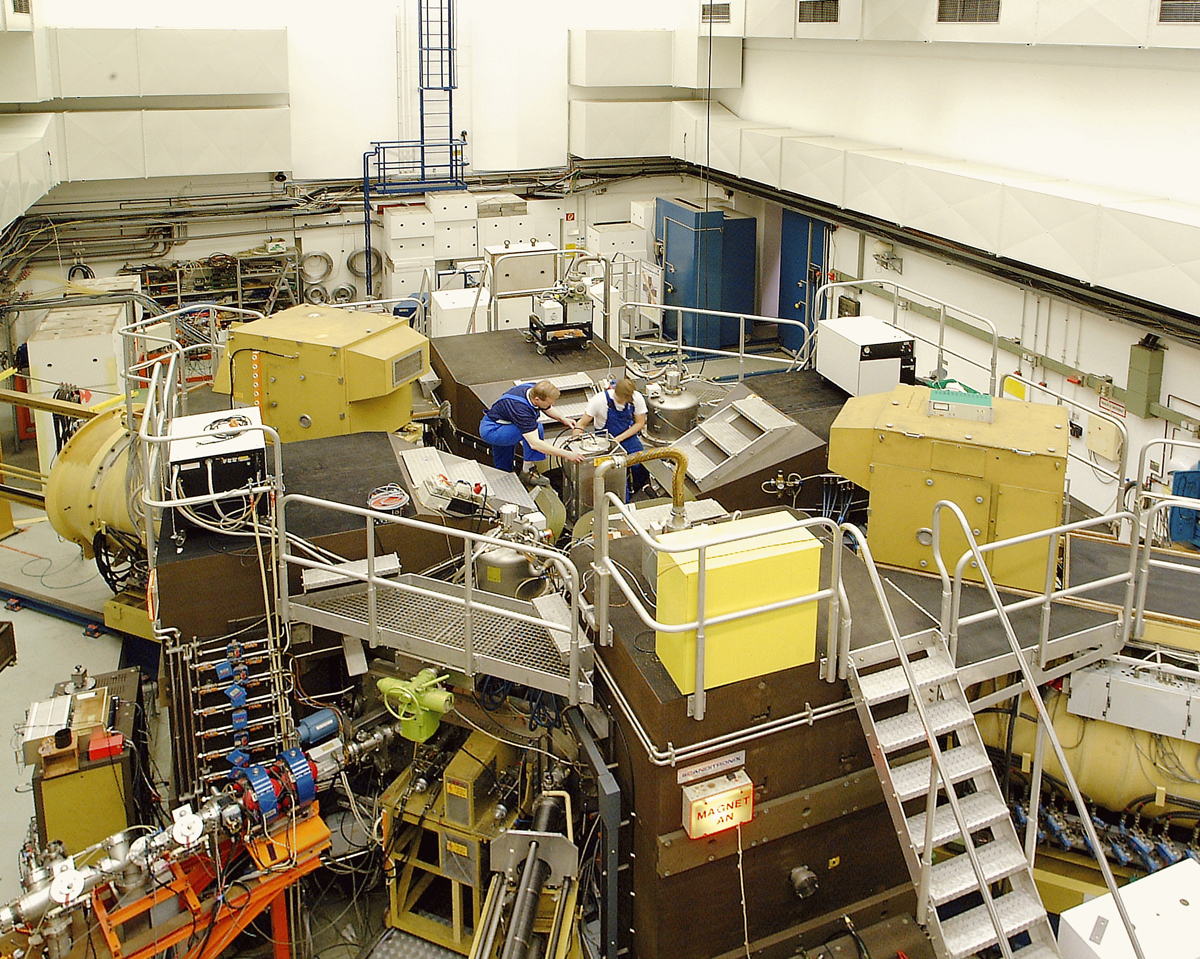

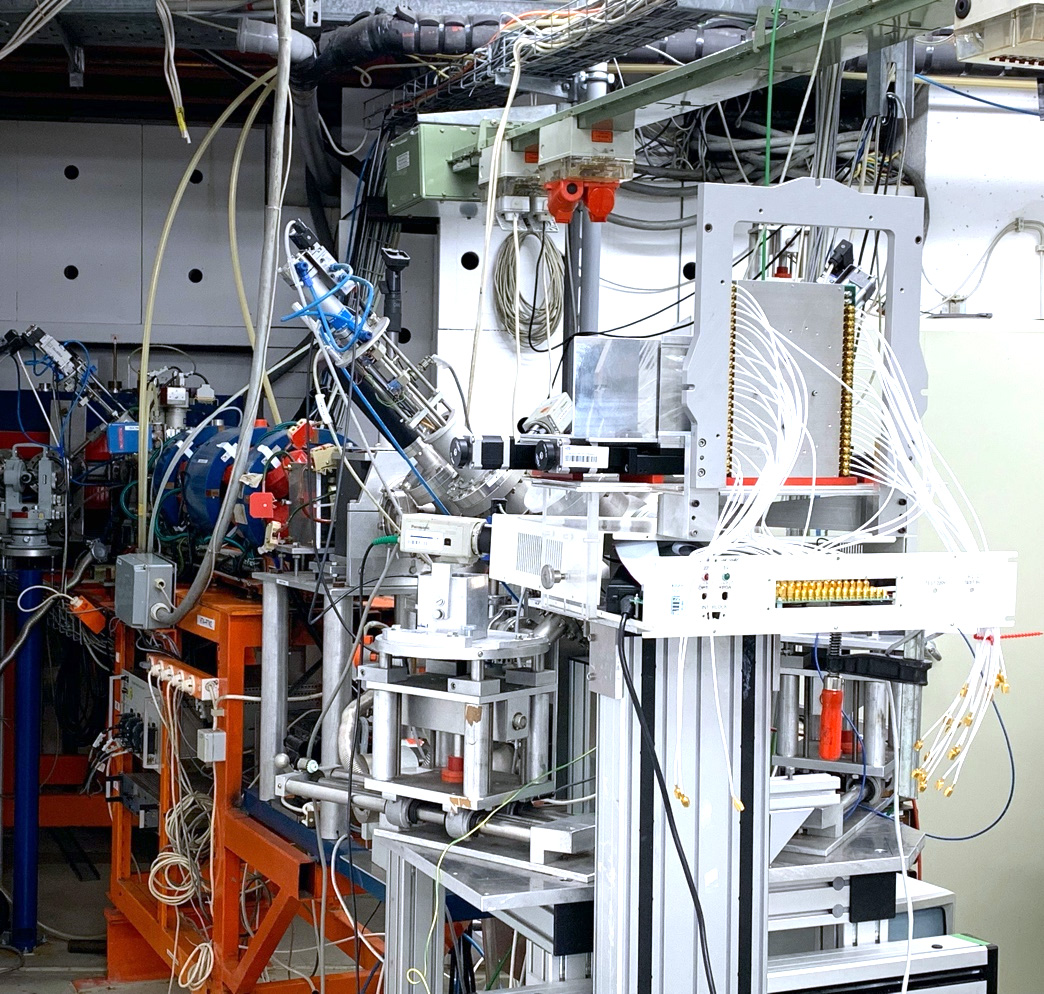

68 MeV proton cyclotron at HZB© HZBExperimental beamline with end station at HZB © DETECTOR – Devices & Technologies Torino
